Works Studio offers a full suite of electrical and electronics design services, meeting the diverse needs of modern non road mobile machinery, vehicles, and legacy equipment. Our expertise ensures robust, efficient, and compliant system architectures—whether you require design-only support, guidance for manufacturing partners, or managed prototype builds.

Key Service Areas

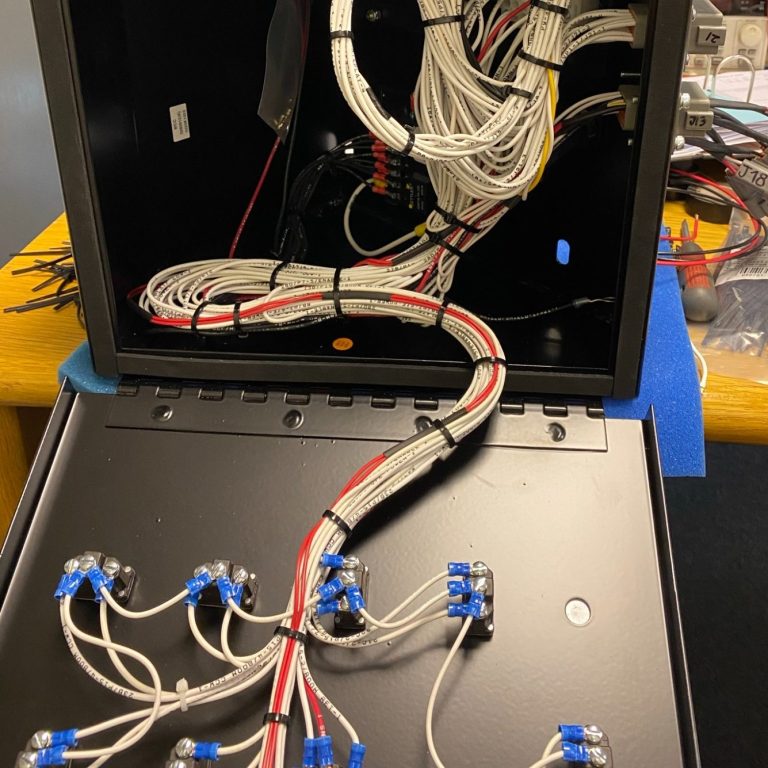

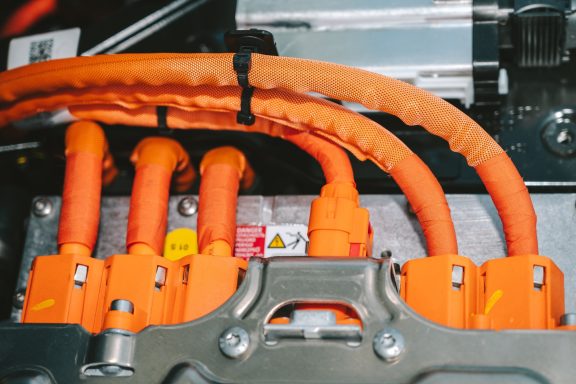

1. Wiring Harness Design and Engineering

• Custom harnesses for automotive, construction machinery (NRMM), agricultural, marine, horticultural, and special machinery.
• High-voltage (up to 700VDC), low-voltage (up to 60VDC), and hybrid system integration.

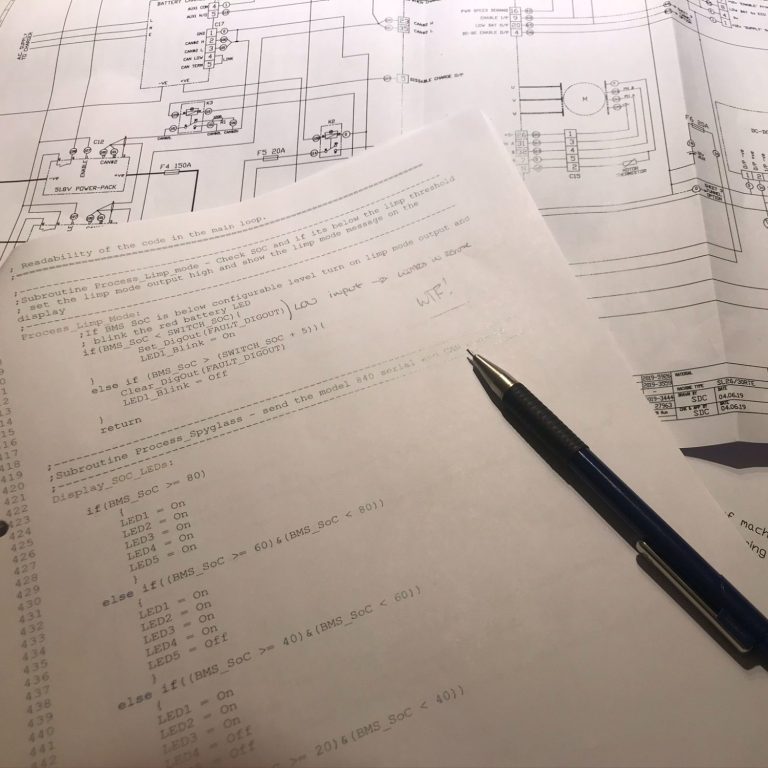

• Detailed schematic capture in 2D/3D CAD, cable routing, breakout tables, and full documentation.
• Focus on manufacturability, serviceability, and compliance (EMC/EMI, IP ratings, safety standards).

2. Control System & Electronics Design

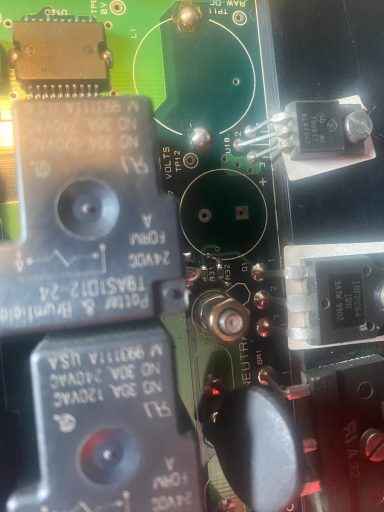

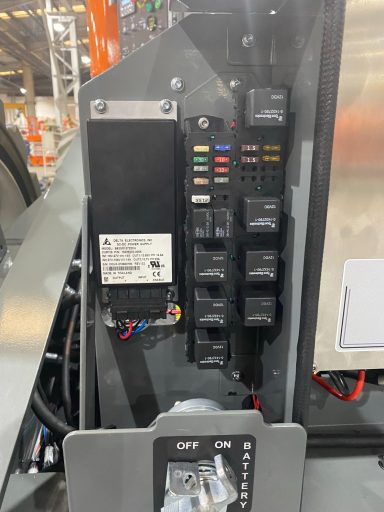

• Engineering of relay logic, contactor panels, and discrete control systems for rugged reliability.

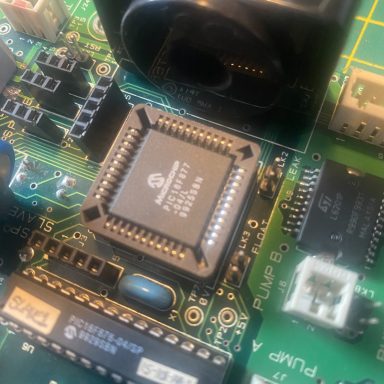

• Embedded microcontroller-based systems (PIC and others) for custom controls, automation, and monitoring.
• Hybrid and legacy system modernization—bridging older platforms with new digital control, diagnostics, or remote monitoring features.

3. System Architecture & Prototyping

• End-to-end electrical and electronics system development, from technical requirements to initial hardware.
• Full system layout, interface design (CAN, LIN), and schematic validation.

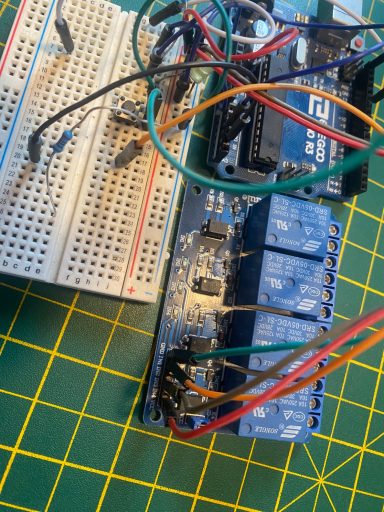

• Rapid prototyping: harness mock-ups, breadboards, or low-volume builds with trusted subcontractors.

4. Engineering Consultancy

• Independent design-only engagements or design and support for manufacturing/manufacture selection.
• Advisory on hydrogen fuel cell electrification, HV integration, retrofit strategies, and compliance (UKCA/CE, ISO, sector-specific).
• Diagnostic support and troubleshooting for both contemporary and legacy machinery.

5. Documentation & Training

• Comprehensive technical manuals, handover documentation, and detailed wiring diagrams.
• Bespoke training solutions for technicians, engineers, and operators—tailored to your equipment and systems.

Specialist Expertise

Hydrogen & Electric Machinery: Design consultancy for fuel cell and BEV/EV platforms, including safe HV distribution and hydrogen fuel cell integration.

Legacy & Classic Equipment: Modernization, upgrades, and continued support for established technologies—Relay logic, simple PLCs, and early embedded systems.

Sector Flexibility: Services adapted for construction, agriculture, horticulture, light marine, industrial automation, and specialist vehicles.

Typical Engagement Path

1. Consultation:
   Understand project needs, existing equipment, targets, and constraints.
2. System Design:
   Layout schematics, select components, and prepare documentation.
3. Prototype & Validation:
   Build and test, using simulation or physical builds as required.
4. Manufacturing Support:
   Handover to your manufacturer, or managed through approved subcontractors.
5. Deployment & Training:
   Ensure a smooth transfer to operations and in-field teams.

Why Choose Works Studio?

• Award-winning, multi-sector engineering expertise.
• Independence: design-led, client-centred, and supplier-agnostic.
• Solutions for both next-generation electrified platforms and dependable upgrades for legacy machinery.
• Flexible engagement—from R&D experiments to full system roll-outs and support.

Reach out to Works Studio for electrical and electronics design that stands up to the demands of real-world machinery—today and tomorrow.
